Speaker B&C Speakers 6PEV13, 8 ohm, 6.5 inch

Brand
B&C Speakers
Model
6PEV13
SKU
6PEV13-8
Manufacturer code
ALT006PEV138
Product type
Cone driver
Sales packaging
Sold by piece
Brand
B&C Speakers
Model
6PEV13
TLHP code
6PEV13-8
Manufacturer code
ALT006PEV138
Product type
Cone driver
Sales packaging
Sold by Piece
Recommended retail price
€160.80
TLHP selling price
93.40IT/piece
excluding delivery service
Save
42%

Simulate shipping costs and VAT
In stock: 2 pieces

If you want to purchase more than the quantity in stock, have a look at the supply time below :

Indicative average supply lead time: 4 weeks
90 days to change your mind !
learn more
Qty

  • 240 W continuous program power capacity
    38 mm (1.5 in) aluminium voice coil
    150 - 8000 Hz response
    99 dB sensitivity

    High efficiency 6" cone midrange, ideally suited for three and four way systems. Very smooth response from 400 Hz to 8 kHz. An aluminium phase plug increases axial sensitivity and controls high frequency dispersion.

General

Product type Cone driver
Brand B&C Speakers
Reference 6PEV13
Product code ALT006PEV138

Informations

Nominal impedance 8 ohm
Dimensional category 7.5 inch
Frequency coverage type Fullrange
Manufacturer sensitivity 99 dB
Calculated sensitivity 96.73 dB
Nominal power handling 120 W
Bandwidth 150÷8000 Hz

Fundamental parameters

Sd 132 cm²
Mms 6 gr
Le 0.6 mH
Re 5.2 ohm
BL 8.2 T.m

Small signal parameters

Fs 126 Hz
Qes 0.39
Qms 4.6
Qts 0.36
Vas 6 L

Datas

Xmax ±2.5 mm
Calculated Xmax ±2.5 mm
EBP 323 Hz
Zmin 6 ohm
Fs / Qts 350 Hz
Vas * Qts² 0.78 L
Efficiency 3 %
Calculated efficiency 2.96 %
Weight ~2.4 kg

Dimensions

Voice coil diameter 1.5 inch
Winding depth 7 mm
Gap height 6 mm
Outside diameter 187 mm
Baffle cutout diameter 145 mm
Front thickness 9 mm
Depth after front 71 mm

Shape & Materials

Front chape Cylindrical
Magnet type Ferrite
Basket masterial Aluminium
Winding material Aluminium
Voice coil former Glass fiber


Question about B&C Speakers 6PEV13-8

Ask a new question!

This system is only available for technical questions. For questions of prices, availability of products and deadline thank you to send your request by the contact page.


With B&C Speakers 6PEV13-8, customers has also bought

Informations B&C Speakers 6PEV13-8

240 W continuous program power capacity
38 mm (1.5 in) aluminium voice coil
150 - 8000 Hz response
99 dB sensitivity

High efficiency 6" cone midrange, ideally suited for three and four way systems. Very smooth response from 400 Hz to 8 kHz. An aluminium phase plug increases axial sensitivity and controls high frequency dispersion.
Manufacturer B&C Speakers
Name Speaker B&C Speakers 6PEV13, 8 ohm, 6.5 inch
SKU 6PEV13-8
Impedance 8 Ohm
Seller TLHP
Price 93.40 77.83
Availability In stock


All or a part of the characteristics displayed on this page are provided by the manufacturer, it is possible that some pieces of information are unavailable or wrong. In addition, the manufacturer may need to change the product specifications without notice at any time in order to improve the product, or to adapt his offer to the manufacturing and supply constraints.. We suggest you to contact us if you need further information, if you observe a mistake or if you wish to have confirmation about information.

Measures/Schemes B&C Speakers 6PEV13-8

SPL measure

Image spl measure cone driver B&C Speakers Speaker B&C Speakers 6PEV13, 8 ohm, 6.5 inch

Impedance measure

Image impedance measure cone driver B&C Speakers Speaker B&C Speakers 6PEV13, 8 ohm, 6.5 inch

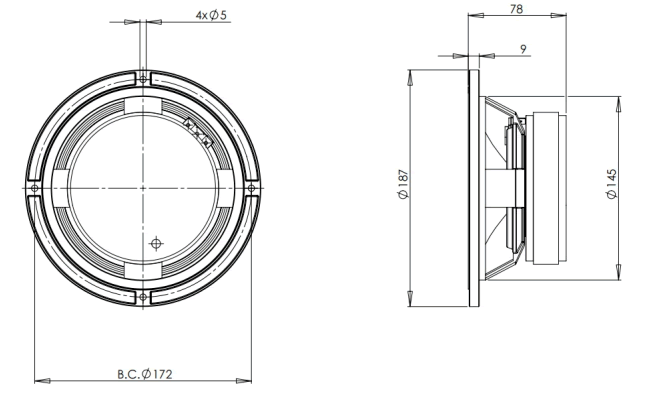

Dimensions

Image Drawing & Mounting cone driver B&C Speakers Speaker B&C Speakers 6PEV13, 8 ohm, 6.5 inch

Garantie

This product is under manufacturer's warranty. This warranty protect you for the manufacturing defaults. The warranty does not protect for abnormal use of the product.
