Pair of speakers SEAS ML15RCY/TP, 8 ohm, 146 mm
|
SEAS |
ML15RCY/TP |
ML15RCY/TP-4 |
H2009-04 |
Cone driver |
Sold by pair |
|
|
Brand SEAS |
Model ML15RCY/TP |
TLHP code ML15RCY/TP-4 |
Manufacturer code H2009-04 |
||
|
Product type Cone driver |
Sales packaging Sold by Pair |
|
|||
In stock: 2 pairs
If you want to purchase more than the quantity in stock, have a look at the supply time below :
Indicative average supply lead time: 4 weeks
90 days to change your mind !
learn more
learn more
General |
|
| Product type | Cone driver |
| Brand | SEAS |
| Reference | ML15RCY/TP |
| Product code | H2009-04 |
Informations |
|
| Product manufacturer range | 15 cm, Midrange, Prestige |
| Nominal impedance | 4 ohm |
| Dimensional category | 6 inch |
| Frequency coverage type | Low, Midbass, Midrange |
| Manufacturer sensitivity | 90 dB |
| Calculated sensitivity | 86.84 dB |
| Nominal power handling | 100 W |
| Max power handling | 200 W |
| Bandwidth | 100÷5000 Hz |
Fundamental parameters |
|
| Sd | 75 cm² |
| Mms | 8.6 gr |
| Cms | 1250 µm/N |
| Rms | 0.74 kg/s |
| Le | 0.24 mH |
| Re | 3 ohm |
| BL | 4.8 T.m |
Small signal parameters |
|
| Fs | 48 Hz |
| Qes | 0.35 |
| Qms | 3.53 |
| Qts | 0.32 |
| Vas | 10 L |
Datas |
|
| Flux density | 1.3 T |
| Xmax | ±3.4 mm |
| Calculated Xmax | ±3.75 mm |
| Xvar, Xmech, Xlim | ±10 mm |
| EBP | 137 Hz |
| Fs / Qts | 150 Hz |
| Vas * Qts² | 1.03 L |
| Calculated efficiency | 0.31 % |
| Weight | ~3.1 kg |
Dimensions |
|
| Voice coil diameter | 0.98 inch |
| Winding depth | 9.5 mm |
| Gap height | 6 mm |
| Outside diameter | 146 mm |
| Baffle cutout diameter | 105 mm |
| Front thickness | 4.2 mm |
| Depth after front | 67.5 mm |
| Diamètre aimant (mm) | 100 mm |
Shape & Materials |
|
| Front chape | Cylindrical |
| Magnet type | Ferrite |
| Basket masterial | Acier |
| Winding material | Copper |
| Voice coil former | Titanium |
| Surround shape | One roll |
| Surround material | Rubber |
Question about SEAS ML15RCY/TP-4
Ask a new question!This system is only available for technical questions. For questions of prices, availability of products and deadline thank you to send your request by the contact page.
With SEAS ML15RCY/TP-4, customers has also bought
Informations SEAS ML15RCY/TP-4
Manufacturer
SEAS
Name Pair of speakers SEAS ML15RCY/TP, 8 ohm, 146 mm
SKU ML15RCY/TP-4
Price € 339.80 283.17
Availability In stock
Buy Pair of speakers SEAS ML15RCY/TP, 8 ohm, 146 mm
All or a part of the characteristics displayed on this page are provided by the manufacturer, it is possible that some pieces of information are unavailable or wrong. In addition, the manufacturer may need to change the product specifications without notice at any time in order to improve the product, or to adapt his offer to the manufacturing and supply constraints.. We suggest you to contact us if you need further information, if you observe a mistake or if you wish to have confirmation about information.
Name Pair of speakers SEAS ML15RCY/TP, 8 ohm, 146 mm
SKU ML15RCY/TP-4
Impedance
4
Ohm
Seller
TLHP
Price € 339.80 283.17
Availability In stock
Buy Pair of speakers SEAS ML15RCY/TP, 8 ohm, 146 mm
All or a part of the characteristics displayed on this page are provided by the manufacturer, it is possible that some pieces of information are unavailable or wrong. In addition, the manufacturer may need to change the product specifications without notice at any time in order to improve the product, or to adapt his offer to the manufacturing and supply constraints.. We suggest you to contact us if you need further information, if you observe a mistake or if you wish to have confirmation about information.
Measures/Schemes SEAS ML15RCY/TP-4

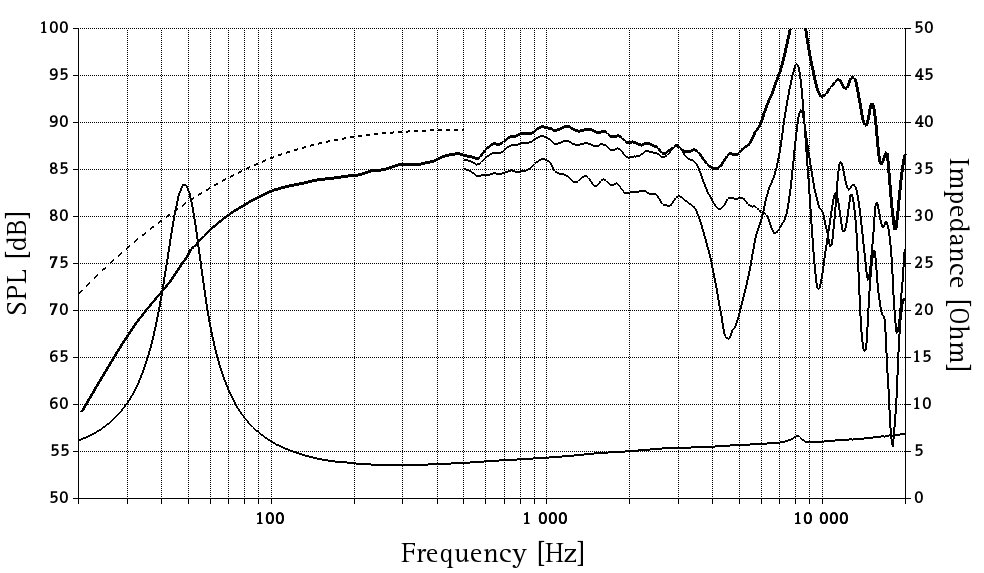

SPL vs Impedance measure

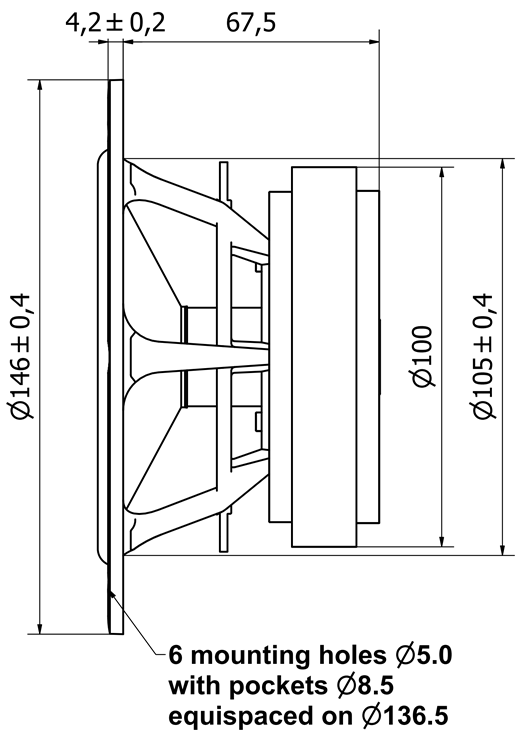

Dimensions
Garantie
This product is under manufacturer's warranty. This warranty protect you for the manufacturing defaults. The warranty does not protect for abnormal use of the product.
