Fostex |
FE168EZ |
FE168EZ-8 |
Cone driver |
|
Brand Fostex |
Model FE168EZ |
TLHP code FE168EZ-8 |
|
Product type Cone driver |
|
HP (Hyperbolic Paraboloid) shell diaphragm, "ES cone" paper made of banana plant's fiber, UDR tangiential edge / damper, Ø120mm large ferrite magnet
General |
|
Product type | Cone driver |
Brand | Fostex |
Reference | FE168EZ |
Informations |
|
Nominal impedance | 8 ohm |
Dimensional category | 7.5 inch |
Frequency coverage type | Fullrange |
Manufacturer sensitivity | 94.5 dB |
Calculated sensitivity | 92.51 dB |
Nominal power handling | 27 W |
Bandwidth | 51÷21000 Hz |
Fundamental parameters |
|
Mms | 8.7 gr |
Le | 0.056 mH |
Re | 6.8 ohm |
Small signal parameters |
|
Fs | 51 Hz |
Qes | 0.27 |
Qms | 5.328 |
Qts | 0.26 |
Vas | 23.7 L |
Datas |
|
Xmax | ±1.6 mm |
EBP | 189 Hz |
Fs / Qts | 196 Hz |
Vas * Qts² | 1.61 L |
Efficiency | 0.9 % |
Calculated efficiency | 1.12 % |

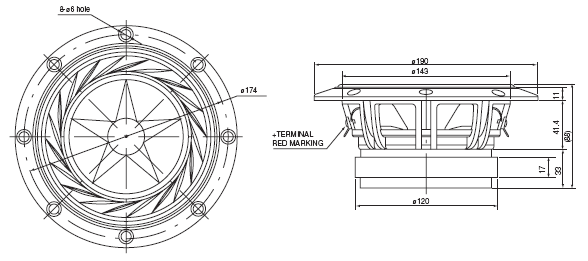

Dimensions |
|
Voice coil diameter | 1.2 inch |
Outside diameter | 190 mm |
Baffle cutout diameter | 143 mm |
Front thickness | 13.6 mm |
Depth after front | 74.4 mm |
Diamètre aimant (mm) | 120 mm |
Shape & Materials |
|
Front chape | Cylindrical |
Magnet type | Ferrite |
