Fullrange speaker Kartesian Wib70_vHP, 8 ohm, 70 x 70 mm
|
.Kartesian |
Wib70_vHP |
WIB70_VHP-8 |
Cone driver |
Sold by piece |
|
|
Brand .Kartesian |
Model Wib70_vHP |
TLHP code WIB70_VHP-8 |
||
|
Product type Cone driver |
Sales packaging Sold by Piece |
|
||
If you want to purchase more than the quantity in stock, have a look at the supply time below :
Indicative average supply lead time: 10 weeks
learn more
-
Wib70_vHP is a high performances wide band driver, engineered to reproduce 150Hz to 20 000Hz in compact product. The typical use case is 2x Wib70_vHP, connected in parallel, in sealed enclosure of 0.8L to reach 150Hz at -6dB.
The frequency response has been shaped to compensate tight front baffle with related sound radiation below ~1kHz.
Its motor structure uses 2x NdFeB magnets with long cooper ring to manage inductance effects.
The Aluminum dust cap is directly glued on the voice coil former to improve energy transfer in high frequency.
The voice coil former is made of polyimide material and Cooper clad Aluminium wire for lower moving mass (2.5g).
The surround is made of low lost NBR surround, it allies linear stiffness over +/-3mm excursion and perfect mechanical matching with cone for smoother response in the midband.
General |
|
| Product type | Cone driver |
| Brand | .Kartesian |
| Reference | Wib70_vHP |
Informations |
|
| Product manufacturer range | Wib, 70, vHP (High Performance) |
Datas |
|
| Weight | ~0.19 kg |
Question about .Kartesian WIB70_VHP-8
Ask a new question!This system is only available for technical questions. For questions of prices, availability of products and deadline thank you to send your request by the contact page.
.Kartesian WIB70_VHP-8, Range, version, replacement...
Use .Kartesian WIB70_VHP-8
|
|
With .Kartesian WIB70_VHP-8, customers has also bought
Informations .Kartesian WIB70_VHP-8
The frequency response has been shaped to compensate tight front baffle with related sound radiation below ~1kHz.
Its motor structure uses 2x NdFeB magnets with long cooper ring to manage inductance effects.
The Aluminum dust cap is directly glued on the voice coil former to improve energy transfer in high frequency.
The voice coil former is made of polyimide material and Cooper clad Aluminium wire for lower moving mass (2.5g).
The surround is made of low lost NBR surround, it allies linear stiffness over +/-3mm excursion and perfect mechanical matching with cone for smoother response in the midband.
Name Fullrange speaker Kartesian Wib70_vHP, 8 ohm, 70 x 70 mm
SKU WIB70_VHP-8
Seller TLHP
Price € 42.96 35.8
Availability In stock
Buy Fullrange speaker Kartesian Wib70_vHP, 8 ohm, 70 x 70 mm
All or a part of the characteristics displayed on this page are provided by the manufacturer, it is possible that some pieces of information are unavailable or wrong. In addition, the manufacturer may need to change the product specifications without notice at any time in order to improve the product, or to adapt his offer to the manufacturing and supply constraints.. We suggest you to contact us if you need further information, if you observe a mistake or if you wish to have confirmation about information.
Measures/Schemes .Kartesian WIB70_VHP-8

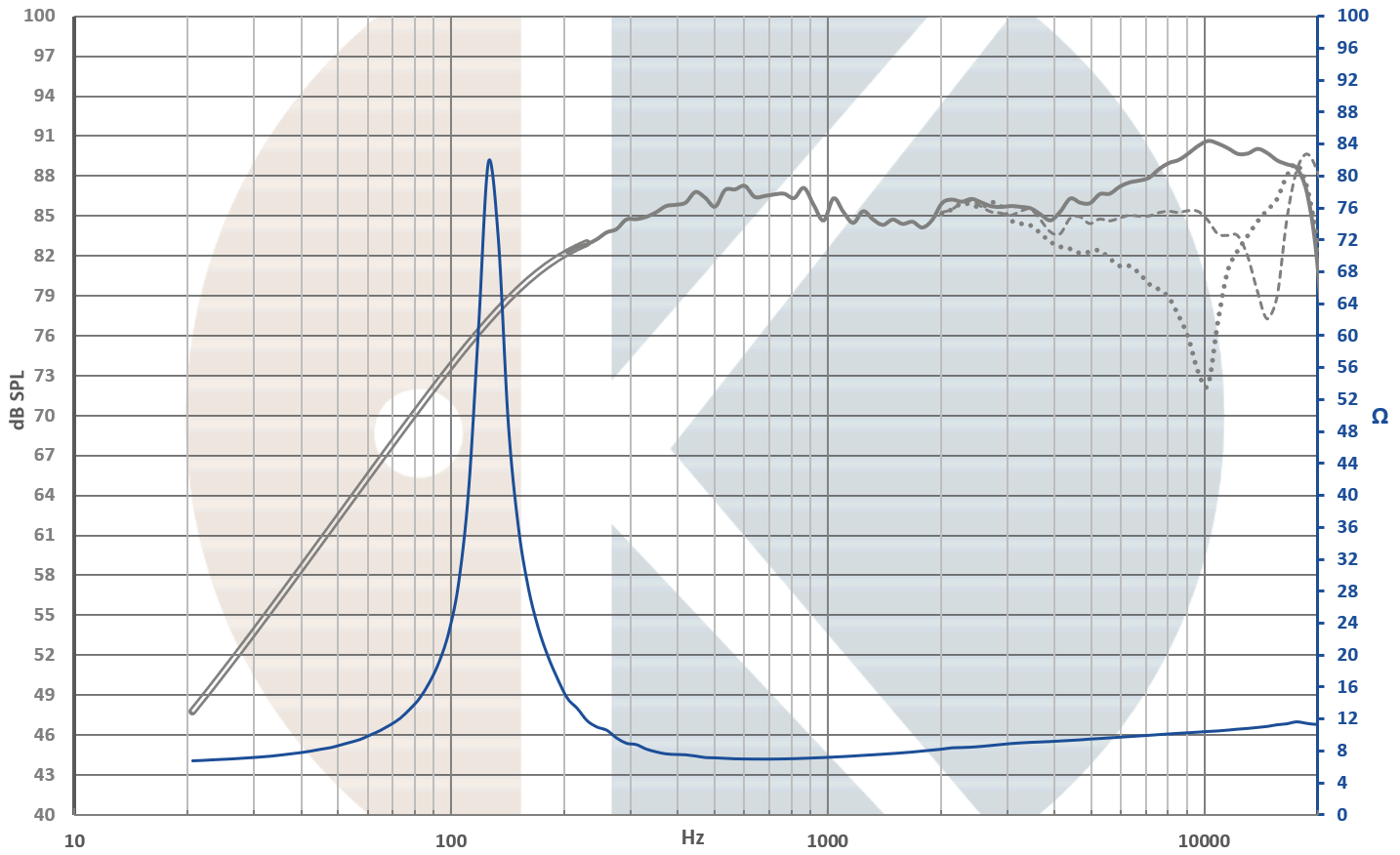

SPL vs Impedance measure

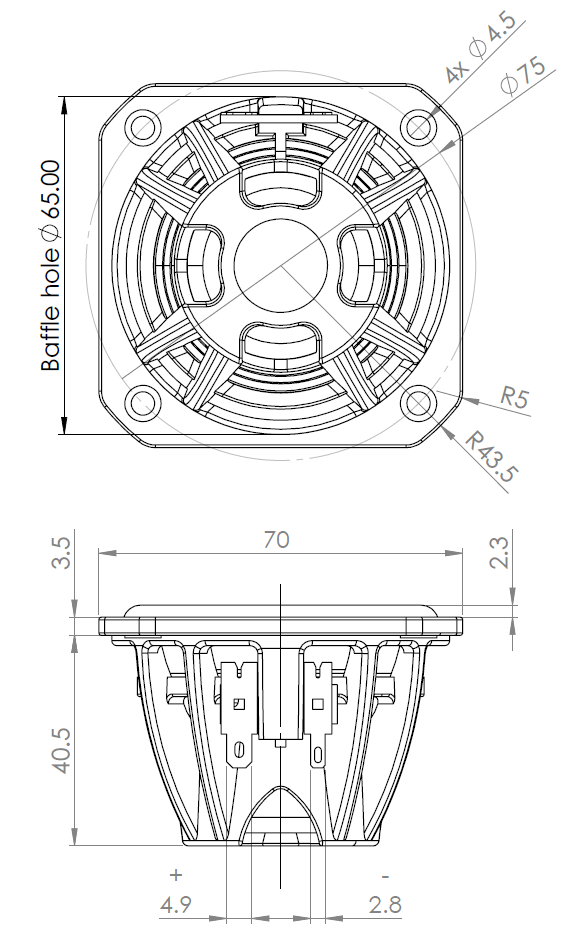

Dimensions
Garantie
This product is under manufacturer's warranty. This warranty protect you for the manufacturing defaults. The warranty does not protect for abnormal use of the product.
