Speaker B&C Speakers 10NDL88, 8 ohm, 10 inch
|
B&C Speakers |
10NDL88 |
10NDL88-8 |
ALT10NDL888 |
Cone driver |
Sold by piece |
|
|
Brand B&C Speakers |
Model 10NDL88 |
TLHP code 10NDL88-8 |
Manufacturer code ALT10NDL888 |
||
|
Product type Cone driver |
Sales packaging Sold by Piece |
|
|||
Recommended retail price
TLHP selling price
€251.92IT/piece
excluding delivery service
Save
42%
42%
Simulate shipping costs and VAT
In stock: 3 pieces
If you want to purchase more than the quantity in stock, have a look at the supply time below :
Indicative average supply lead time: 5 weeks
90 days to change your mind !
learn more
learn more
General |
|
| Product type | Cone driver |
| Brand | B&C Speakers |
| Reference | 10NDL88 |
| Product code | ALT10NDL888 |
Informations |
|
| Nominal impedance | 8 ohm |
| Dimensional category | 10.5 inch |
| Frequency coverage type | Midbass, Midrange |
| Manufacturer sensitivity | 96 dB |
| Calculated sensitivity | 93.9 dB |
| Nominal power handling | 700 W |
| Max power handling | 1400 W |
| Bandwidth | 61÷2500 Hz |
Fundamental parameters |
|
| Sd | 320 cm² |
| Mms | 53.5 gr |
| Le | 1.18 mH |
| Re | 5.1 ohm |
| BL | 20 T.m |
Small signal parameters |
|
| Fs | 61 Hz |
| Qes | 0.26 |
| Qms | 7.3 |
| Qts | 0.25 |
| Vas | 18.4 L |
Datas |
|
| Flux density | 1.5 T |
| Xmax | ±8.1 mm |
| Calculated Xmax | ±9.02 mm |
| Xvar, Xmech, Xlim | ±7.5 mm |
| EBP | 235 Hz |
| Zmin | 6.3 ohm |
| Fs / Qts | 244 Hz |
| Vas * Qts² | 1.15 L |
| Efficiency | 1.59 % |
| Calculated efficiency | 1.55 % |
| Weight | ~4.6 kg |
| Demodulation ring | Yes |
Dimensions |
|
| Voice coil diameter | 3.5 inch |
| Winding depth | 21.7 mm |
| Gap height | 11 mm |
| Outside diameter | 261 mm |
| Baffle cutout diameter | 230 mm |
| Depth | 128 mm |
| Front thickness | 15 mm |
Shape & Materials |
|
| Front chape | Cylindrical |
| Magnet type | Neodymium |
| Basket masterial | Aluminium |
| Winding material | Aluminium |
| Voice coil former | Glass fiber |
| Surround shape | Triple roll |
| Surround material | Cloth |
| Cone shape | Curvilinear |
Question about B&C Speakers 10NDL88-8
Ask a new question!This system is only available for technical questions. For questions of prices, availability of products and deadline thank you to send your request by the contact page.
B&C Speakers 10NDL88-8, Range, version, replacement...
Repair B&C Speakers 10NDL88-8
With B&C Speakers 10NDL88-8, customers has also bought
Informations B&C Speakers 10NDL88-8
Manufacturer
B&C Speakers
Name Speaker B&C Speakers 10NDL88, 8 ohm, 10 inch
SKU 10NDL88-8
Price € 251.92 209.94
Availability In stock
Buy Speaker B&C Speakers 10NDL88, 8 ohm, 10 inch
All or a part of the characteristics displayed on this page are provided by the manufacturer, it is possible that some pieces of information are unavailable or wrong. In addition, the manufacturer may need to change the product specifications without notice at any time in order to improve the product, or to adapt his offer to the manufacturing and supply constraints.. We suggest you to contact us if you need further information, if you observe a mistake or if you wish to have confirmation about information.
Name Speaker B&C Speakers 10NDL88, 8 ohm, 10 inch
SKU 10NDL88-8
Impedance
8
Ohm
Seller
TLHP
Price € 251.92 209.94
Availability In stock
Buy Speaker B&C Speakers 10NDL88, 8 ohm, 10 inch
All or a part of the characteristics displayed on this page are provided by the manufacturer, it is possible that some pieces of information are unavailable or wrong. In addition, the manufacturer may need to change the product specifications without notice at any time in order to improve the product, or to adapt his offer to the manufacturing and supply constraints.. We suggest you to contact us if you need further information, if you observe a mistake or if you wish to have confirmation about information.
Measures/Schemes B&C Speakers 10NDL88-8

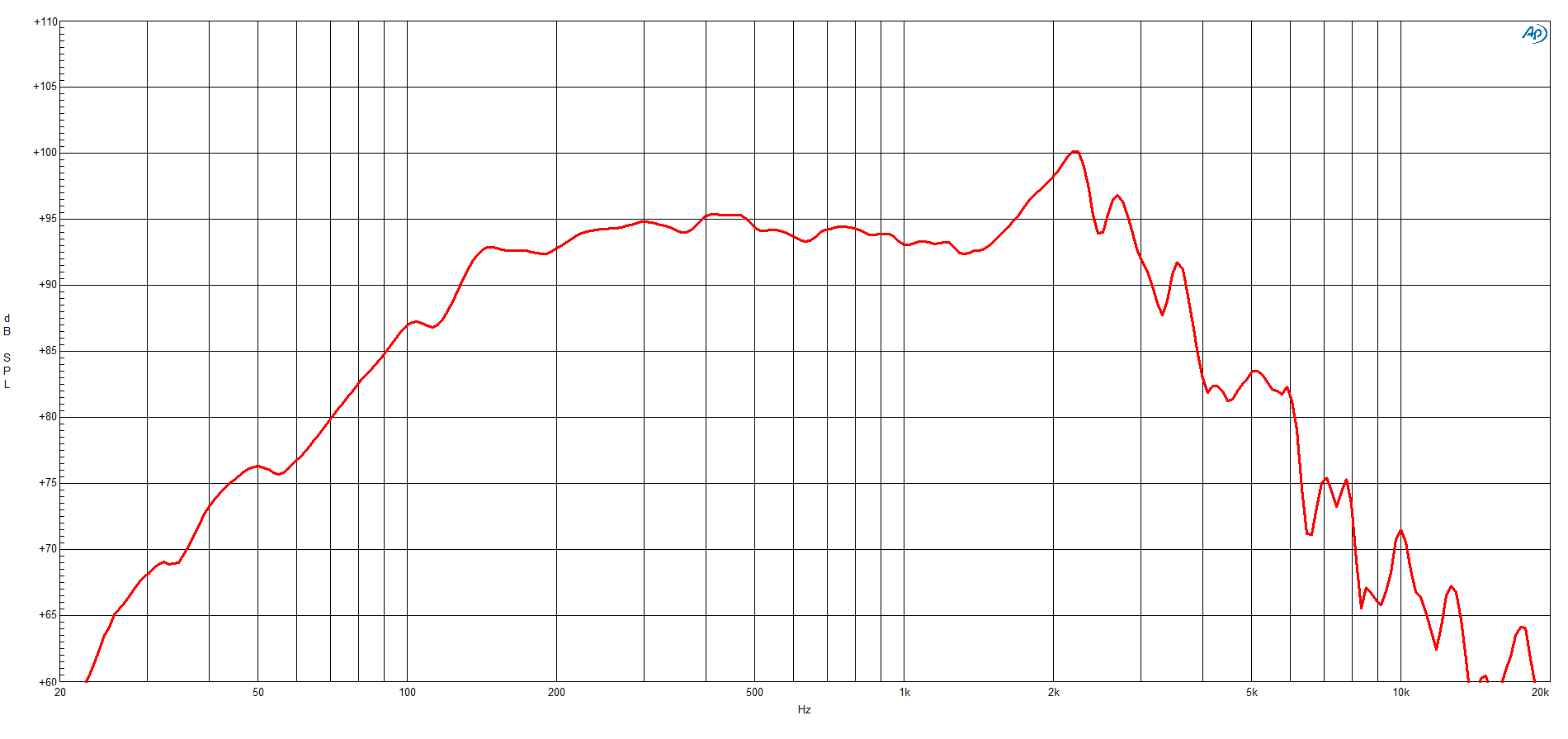

SPL measure

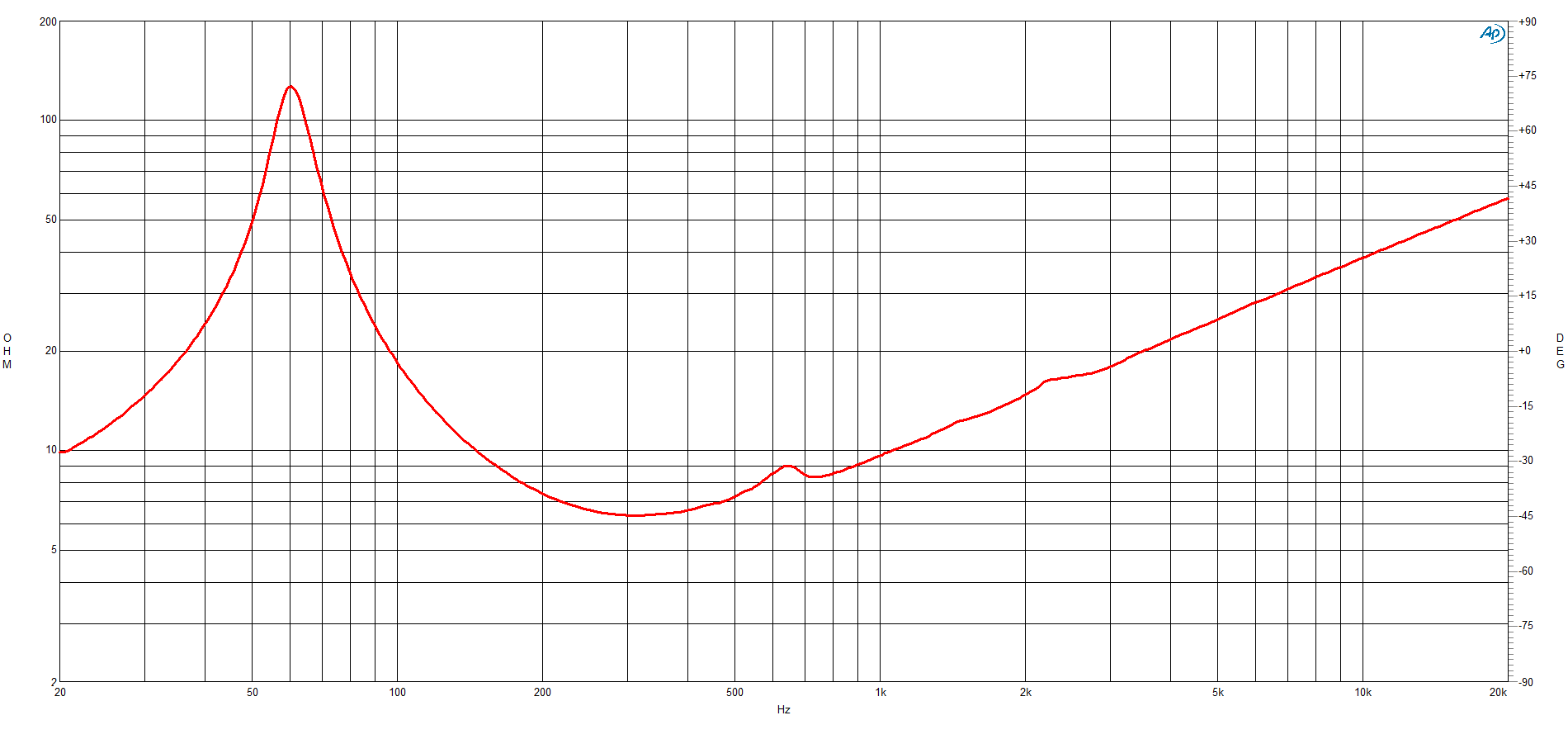

Impedance measure

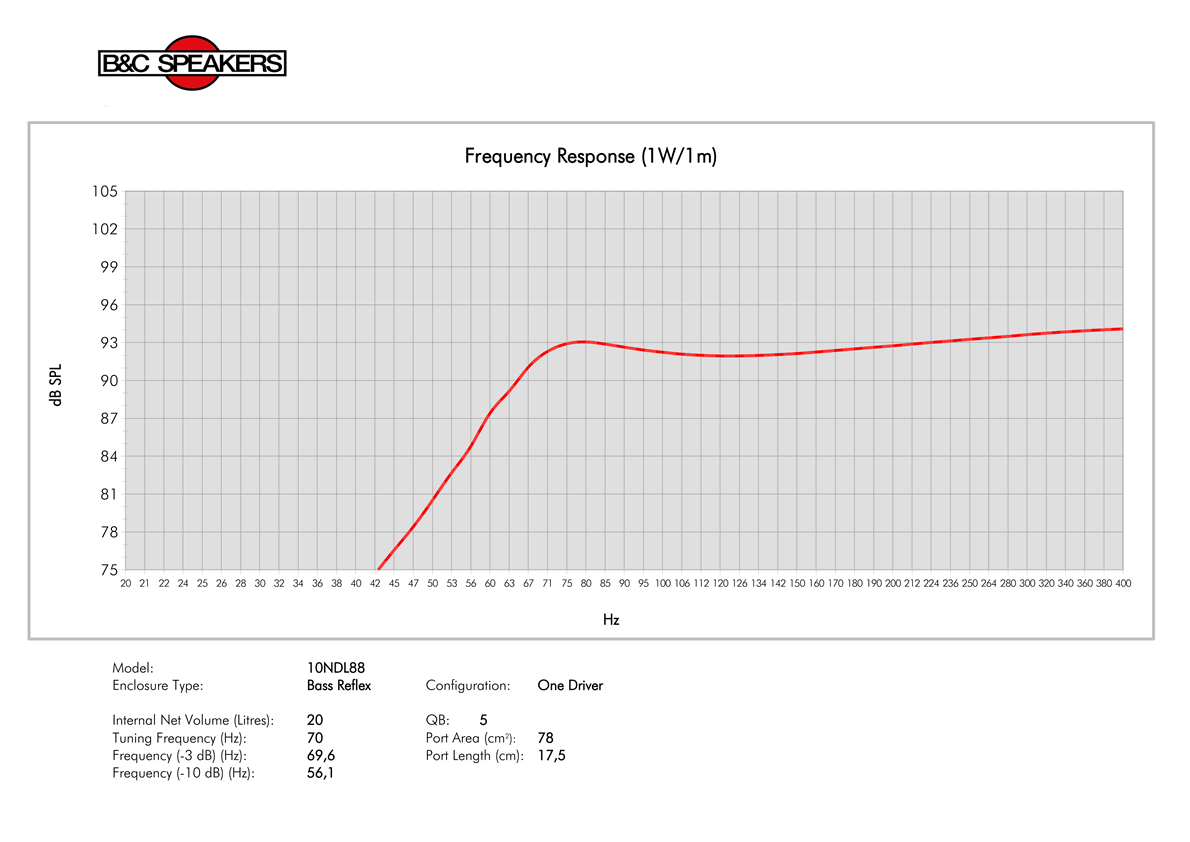

Simulation

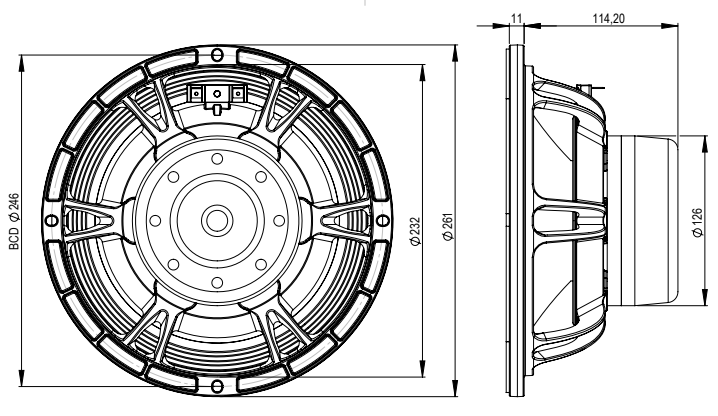

Dimensions
Garantie
This product is under manufacturer's warranty. This warranty protect you for the manufacturing defaults. The warranty does not protect for abnormal use of the product.
