Speaker Eminence SIGMA PRO 18A-2, 8 ohm, 18 inch
|
Eminence |
SIGMA PRO 18A-2 |
SIG PRO 18A-8 |
18384B-U |
Cone driver |
Sold by piece |
|
|
Brand Eminence |
Model SIGMA PRO 18A-2 |
TLHP code SIG PRO 18A-8 |
Manufacturer code 18384B-U |
||
|
Product type Cone driver |
Sales packaging Sold by Piece |
|
|||
Recommended retail price
TLHP selling price
€236.05IT/piece
excluding delivery service
Save
45%
45%
Simulate shipping costs and VAT
In stock: 4 pieces
If you want to purchase more than the quantity in stock, have a look at the supply time below :
Indicative average supply lead time: 5 weeks
90 days to change your mind !
learn more
learn more
General |
|
| Product type | Cone driver |
| Brand | Eminence |
| Reference | SIGMA PRO 18A-2 |
| Product code | 18384B-U |
Informations |
|
| Nominal impedance | 8 ohm |
| Dimensional category | 18 inch |
| Frequency coverage type | Sub, Low |
| Manufacturer sensitivity | 99 dB |
| Calculated sensitivity | 96.94 dB |
| Nominal power handling | 650 W |
| Max power handling | 1300 W |
| Bandwidth | 41÷2400 Hz |
Fundamental parameters |
|
| Sd | 1140 cm² |
| Mms | 130 gr |
| Cms | 240 µm/N |
| Le | 1.9 mH |
| Re | 6.29 ohm |
| BL | 22.1 T.m |
Small signal parameters |
|
| Fs | 28 Hz |
| Qes | 0.3 |
| Qms | 8.28 |
| Qts | 0.29 |
| Vas | 441.2 L |
Datas |
|
| Xmax | ±6.1 mm |
| Xvar, Xmech, Xlim | ±18 mm |
| EBP | 93 Hz |
| Fs / Qts | 97 Hz |
| Vas * Qts² | 37.11 L |
| Calculated efficiency | 3.1 % |
| Weight | ~11.1 kg |
| Air volume occupied by the driver | 6.62 L |
Dimensions |
|
| Voice coil diameter | 3 inch |
| Gap height | 9.5 mm |
| Outside diameter | 457.2 mm |
| Baffle cutout diameter | 420.6 mm |
| Depth | 207 mm |
Shape & Materials |
|
| Front chape | Cylindrical |
| Magnet type | Ferrite |
| Basket masterial | Aluminium |
| Winding material | Copper |
| Voice coil former | Polyimide |
| Surround shape | Double roll |
| Surround material | Cloth |
| Dome material | Paper |
Question about Eminence SIG PRO 18A-8
Ask a new question!This system is only available for technical questions. For questions of prices, availability of products and deadline thank you to send your request by the contact page.
Eminence SIG PRO 18A-8, Range, version, replacement...
Repair Eminence SIG PRO 18A-8
Informations Eminence SIG PRO 18A-8
Manufacturer
Eminence
Name Speaker Eminence SIGMA PRO 18A-2, 8 ohm, 18 inch
SKU SIG PRO 18A-8
Price € 236.05 196.71
Availability In stock
Buy Speaker Eminence SIGMA PRO 18A-2, 8 ohm, 18 inch
All or a part of the characteristics displayed on this page are provided by the manufacturer, it is possible that some pieces of information are unavailable or wrong. In addition, the manufacturer may need to change the product specifications without notice at any time in order to improve the product, or to adapt his offer to the manufacturing and supply constraints.. We suggest you to contact us if you need further information, if you observe a mistake or if you wish to have confirmation about information.
Name Speaker Eminence SIGMA PRO 18A-2, 8 ohm, 18 inch
SKU SIG PRO 18A-8
Impedance
8
Ohm
Seller
TLHP
Price € 236.05 196.71
Availability In stock
Buy Speaker Eminence SIGMA PRO 18A-2, 8 ohm, 18 inch
All or a part of the characteristics displayed on this page are provided by the manufacturer, it is possible that some pieces of information are unavailable or wrong. In addition, the manufacturer may need to change the product specifications without notice at any time in order to improve the product, or to adapt his offer to the manufacturing and supply constraints.. We suggest you to contact us if you need further information, if you observe a mistake or if you wish to have confirmation about information.
Measures/Schemes Eminence SIG PRO 18A-8

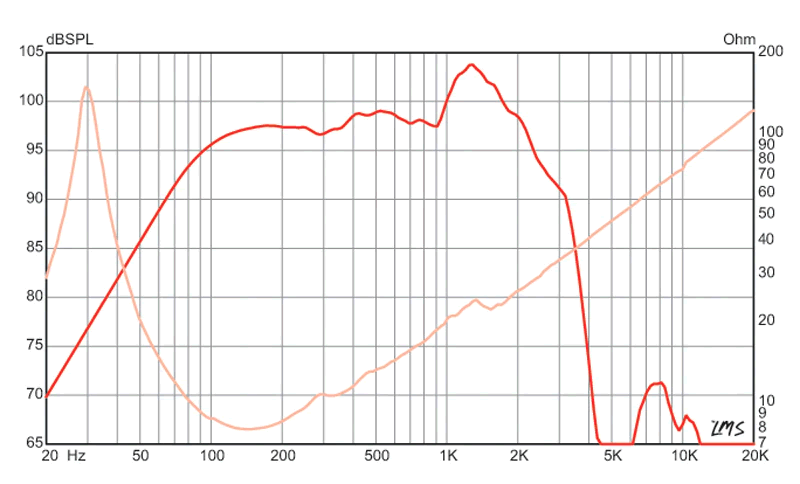

SPL vs Impedance measure
Garantie
This product is under manufacturer's warranty. This warranty protect you for the manufacturing defaults. The warranty does not protect for abnormal use of the product.
