Speaker Kartesian Wib145_vHE, 6 ohm, 120 mm
|
.Kartesian |
Wib145_vHE |
WIB145_VHE-6 |
Cone driver |
Sold by piece |
|
|
Brand .Kartesian |
Model Wib145_vHE |
TLHP code WIB145_VHE-6 |
||
|
Product type Cone driver |
Sales packaging Sold by Piece |
|
||
In stock: >8 pieces
If you want to purchase more than the quantity in stock, have a look at the supply time below :
Indicative average supply lead time: 10 weeks
90 days to change your mind !
learn more
learn more
General |
|
| Product type | Cone driver |
| Brand | .Kartesian |
| Reference | Wib145_vHE |
Informations |
|
| Product manufacturer range | Wib, 145, vHE (High End) |
| Nominal impedance | 6 ohm |
| Dimensional category | 5.5 inch |
| Frequency coverage type | Sub, Low, Midbass |
| Manufacturer sensitivity | 89 dB |
| Calculated sensitivity | 86.6 dB |
| Nominal power handling | 60 W |
| Max power handling | 100 W |
| Bandwidth | 45÷20000 Hz |
Fundamental parameters |
|
| Sd | 85 cm² |
| Mms | 8.5 gr |
| Re | 4.8 ohm |
| BL | 5 T.m |
Small signal parameters |
|
| Fs | 56 Hz |
| Qes | 0.57 |
| Qms | 5.6 |
| Qts | 0.52 |
| Vas | 9.7 L |
Datas |
|
| Xmax | ±6 mm |
| Xvar, Xmech, Xlim | ±8 mm |
| EBP | 98 Hz |
| Fs / Qts | 108 Hz |
| Vas * Qts² | 2.63 L |
| Calculated efficiency | 0.29 % |
| Demodulation ring | Yes |
Dimensions |
|
| Voice coil diameter | 1.02 inch |
| Outside diameter | 144.3 mm |
| Baffle cutout diameter | 123.6 mm |
| Depth | 73.1 mm |
| Front thickness | 4.2 mm |
| Depth after front | 63.5 mm |
Shape & Materials |
|
| Front chape | Cylindrical |
| Magnet type | Neodymium |
| Basket masterial | Aluminium |
| Winding material | Copper |
| Voice coil former | Titanium |
| Surround shape | One roll |
| Surround material | nitrile butadiene rubber |
Question about .Kartesian WIB145_VHE-6
Ask a new question!This system is only available for technical questions. For questions of prices, availability of products and deadline thank you to send your request by the contact page.
.Kartesian WIB145_VHE-6, Range, version, replacement...
Use .Kartesian WIB145_VHE-6
|
|
Informations .Kartesian WIB145_VHE-6
Manufacturer
.Kartesian
Name Speaker Kartesian Wib145_vHE, 6 ohm, 120 mm
SKU WIB145_VHE-6
Price € 259.20 216
Availability In stock
Buy Speaker Kartesian Wib145_vHE, 6 ohm, 120 mm
All or a part of the characteristics displayed on this page are provided by the manufacturer, it is possible that some pieces of information are unavailable or wrong. In addition, the manufacturer may need to change the product specifications without notice at any time in order to improve the product, or to adapt his offer to the manufacturing and supply constraints.. We suggest you to contact us if you need further information, if you observe a mistake or if you wish to have confirmation about information.
Name Speaker Kartesian Wib145_vHE, 6 ohm, 120 mm
SKU WIB145_VHE-6
Impedance
6
Ohm
Seller
TLHP
Price € 259.20 216
Availability In stock
Buy Speaker Kartesian Wib145_vHE, 6 ohm, 120 mm
All or a part of the characteristics displayed on this page are provided by the manufacturer, it is possible that some pieces of information are unavailable or wrong. In addition, the manufacturer may need to change the product specifications without notice at any time in order to improve the product, or to adapt his offer to the manufacturing and supply constraints.. We suggest you to contact us if you need further information, if you observe a mistake or if you wish to have confirmation about information.
Measures/Schemes .Kartesian WIB145_VHE-6

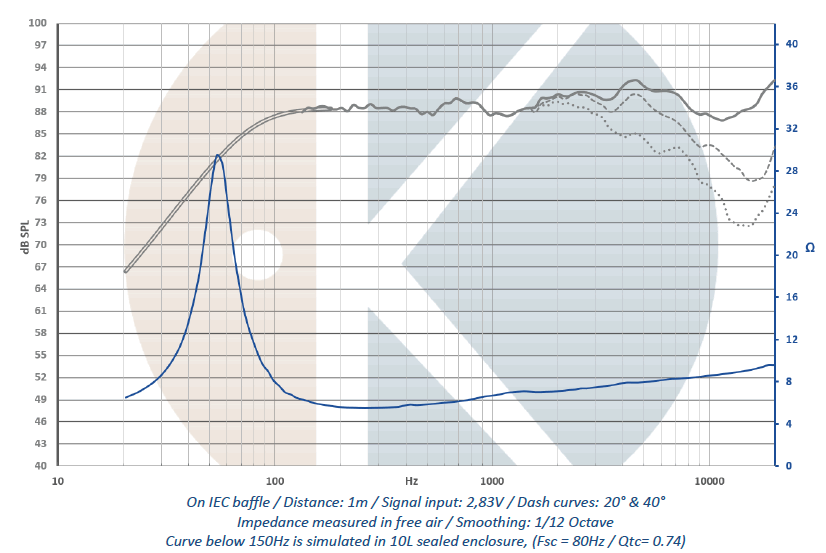

SPL vs Impedance measure

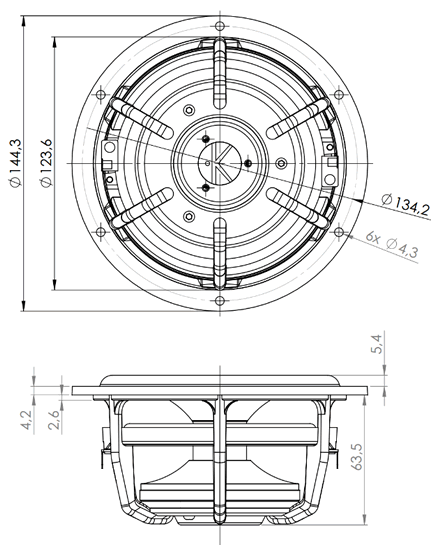

Dimensions
Garantie
This product is under manufacturer's warranty. This warranty protect you for the manufacturing defaults. The warranty does not protect for abnormal use of the product.
