Triaxial speaker B&C Speakers 15HTX100, 8+8+8 ohm, 15 inch
|
B&C Speakers |
15HTX100 |
15HTX100-8+8+8 |
ALT15HTX1008 |
Triaxial driver |
Sold by piece |
|
|
Brand B&C Speakers |
Model 15HTX100 |
TLHP code 15HTX100-8+8+8 |
Manufacturer code ALT15HTX1008 |
||
|
Product type Triaxial driver |
Sales packaging Sold by Piece |
|
|||
Recommended retail price
TLHP selling price
€928.20IT/piece
excluding delivery service
Save
43%
43%
Simulate shipping costs and VAT
Currently in supply
This product is in the process of supply to be in stock.
Reserved on order
Next TLHP reception estimated between Jun 23, 2025 and Jun 30, 2025
General |
|
| Product type | Triaxial driver |
| Brand | B&C Speakers |
| Reference | 15HTX100 |
| Product code | ALT15HTX1008 |
Informations |
|
| Nominal impedance | 8+8+8 ohm |
| Dimensional category | 15.5 inch |
| Manufacturer sensitivity | 99 | 108.5 dB |
| Calculated sensitivity | 97.33 dB |
| Nominal power handling | 800 | 90 W |
| Max power handling | 1600 | 180 W |
| Bandwidth | 52÷1000 | 500÷5500 Hz |
| Recommended min cutoff frequency | 700 | 4500 Hz |
Fundamental parameters |
|
| Sd | 855 cm² |
| Mms | 125 gr |
| Le | 0.9 | 0.26 | 0.1 mH |
| Re | 5.5 ohm |
| BL | 27 T.m |
Small signal parameters |
|
| Fs | 52 Hz |
| Qes | 0.31 |
| Qms | 5.9 |
| Qts | 0.29 |
| Vas | 78 L |
Datas |
|
| Flux density | 1.5 | 1.9 | 1.95 T |
| Xmax | ±10 mm |
| Calculated Xmax | ±10.85 mm |
| Xvar, Xmech, Xlim | ±8.5 mm |
| EBP | 168 Hz |
| Zmin | 7 | 7.5 | 6.5 ohm |
| Fs / Qts | 179 Hz |
| Vas * Qts² | 6.56 L |
| Efficiency | 3.5 % |
| Calculated efficiency | 3.4 % |
| Weight | ~10.8 kg |
| Demodulation ring | Yes |
| Dispersion | 60° |
| Horn technology | Added horn |
Dimensions |
|
| Voice coil diameter | 4 | 3 inch |
| Winding depth | 25.1 mm |
| Gap height | 10.2 mm |
| Outside diameter | 393 mm |
| Baffle cutout diameter | 355 mm |
| Depth | 261 mm |
| Front thickness | 15 mm |
Shape & Materials |
|
| Front chape | Cylindrical |
| Magnet type | Neodymium |
| Basket masterial | Aluminium |
| Winding material | Aluminium |
| Voice coil former | Glass fiber |
| Surround shape | Triple roll |
| Surround material | Cloth |
| Cone shape | Curvilinear |
| Winding material | Aluminium |
| Diaphragm material | HT Polymer |
Question about B&C Speakers 15HTX100-8+8+8
Ask a new question!This system is only available for technical questions. For questions of prices, availability of products and deadline thank you to send your request by the contact page.
B&C Speakers 15HTX100-8+8+8, Range, version, replacement...
From B&C Speakers
From others manufacturers
Repair B&C Speakers 15HTX100-8+8+8
Informations B&C Speakers 15HTX100-8+8+8
Manufacturer
B&C Speakers
Name Triaxial speaker B&C Speakers 15HTX100, 8+8+8 ohm, 15 inch
SKU 15HTX100-8+8+8
Price € 928.20 773.5 Out of stock
Buy Triaxial speaker B&C Speakers 15HTX100, 8+8+8 ohm, 15 inch
All or a part of the characteristics displayed on this page are provided by the manufacturer, it is possible that some pieces of information are unavailable or wrong. In addition, the manufacturer may need to change the product specifications without notice at any time in order to improve the product, or to adapt his offer to the manufacturing and supply constraints.. We suggest you to contact us if you need further information, if you observe a mistake or if you wish to have confirmation about information.
Name Triaxial speaker B&C Speakers 15HTX100, 8+8+8 ohm, 15 inch
SKU 15HTX100-8+8+8
Impedance
8+8+8
Ohm
Seller
TLHP
Price € 928.20 773.5 Out of stock
Buy Triaxial speaker B&C Speakers 15HTX100, 8+8+8 ohm, 15 inch
All or a part of the characteristics displayed on this page are provided by the manufacturer, it is possible that some pieces of information are unavailable or wrong. In addition, the manufacturer may need to change the product specifications without notice at any time in order to improve the product, or to adapt his offer to the manufacturing and supply constraints.. We suggest you to contact us if you need further information, if you observe a mistake or if you wish to have confirmation about information.
Measures/Schemes B&C Speakers 15HTX100-8+8+8

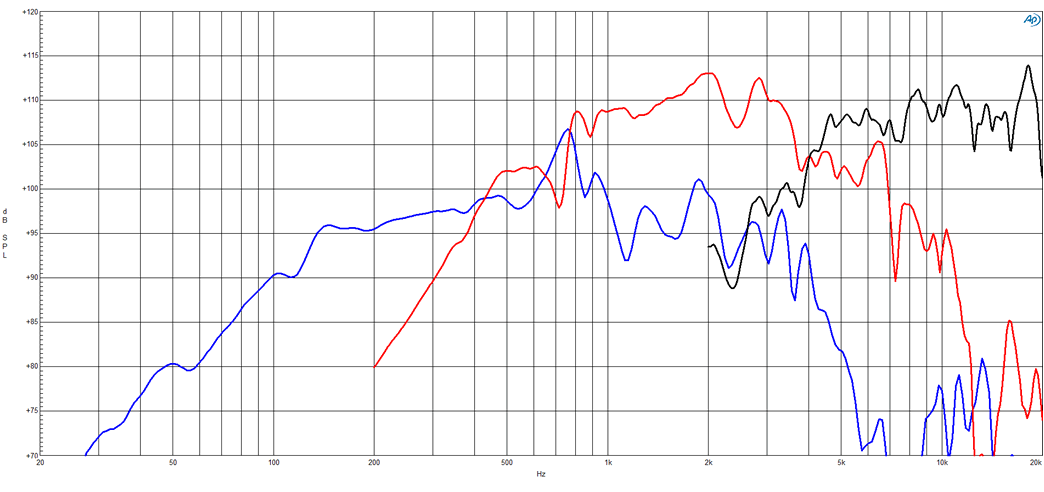

SPL measure

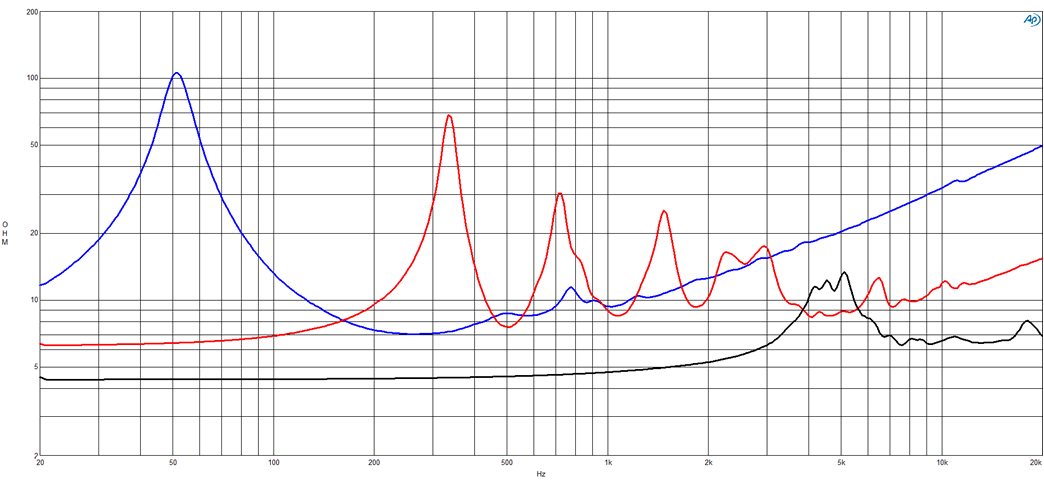

Impedance measure

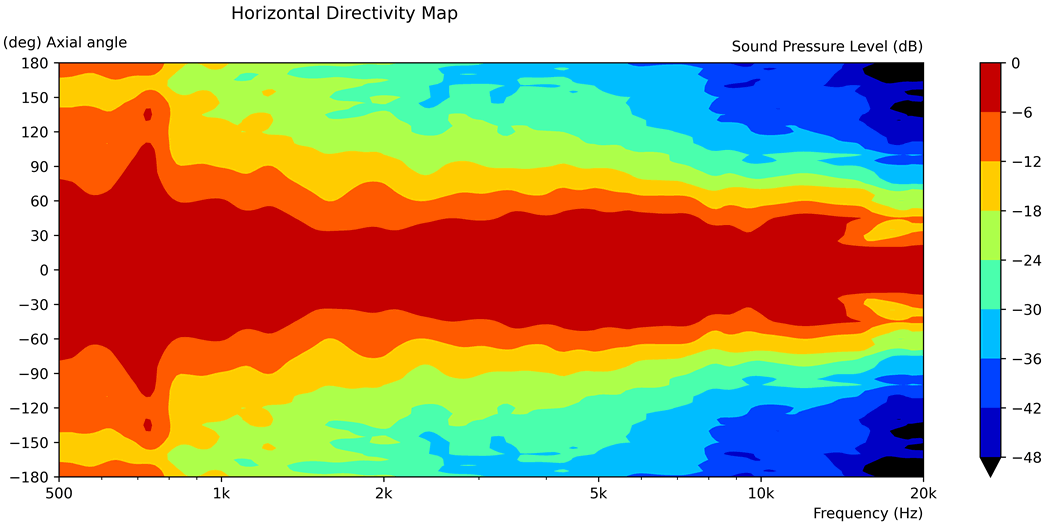

Horizontal directivity measure

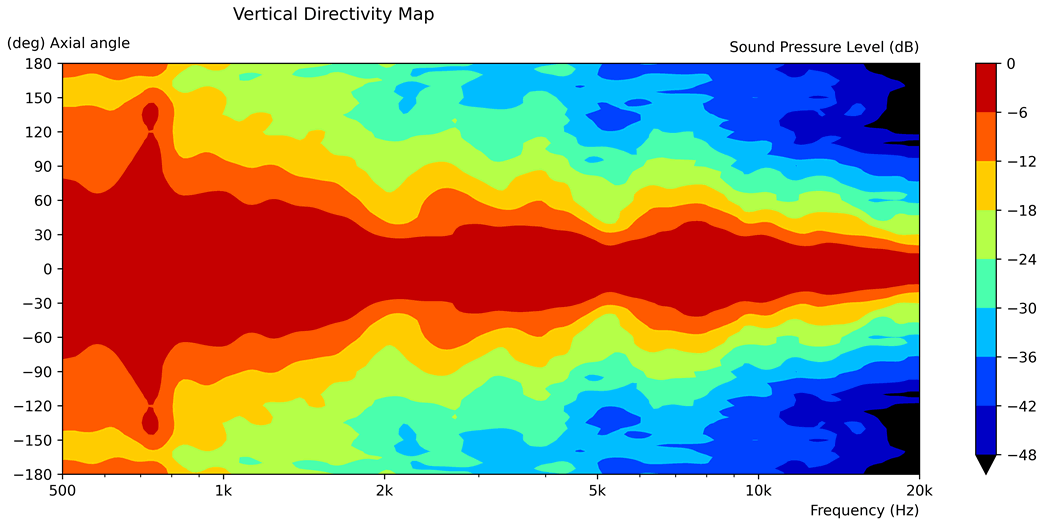

Vertical directivity measure

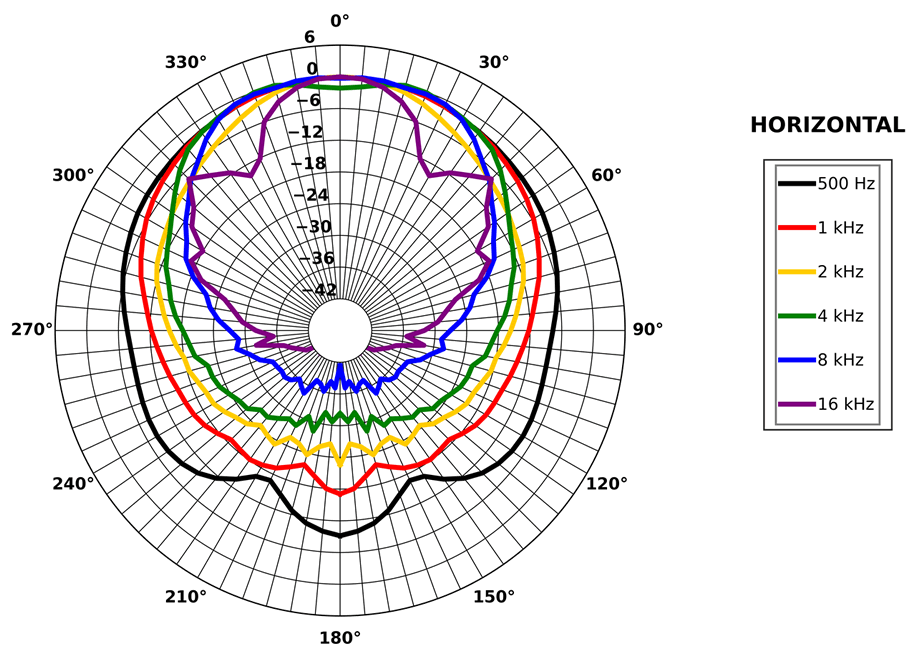

Horizontal polar directivity

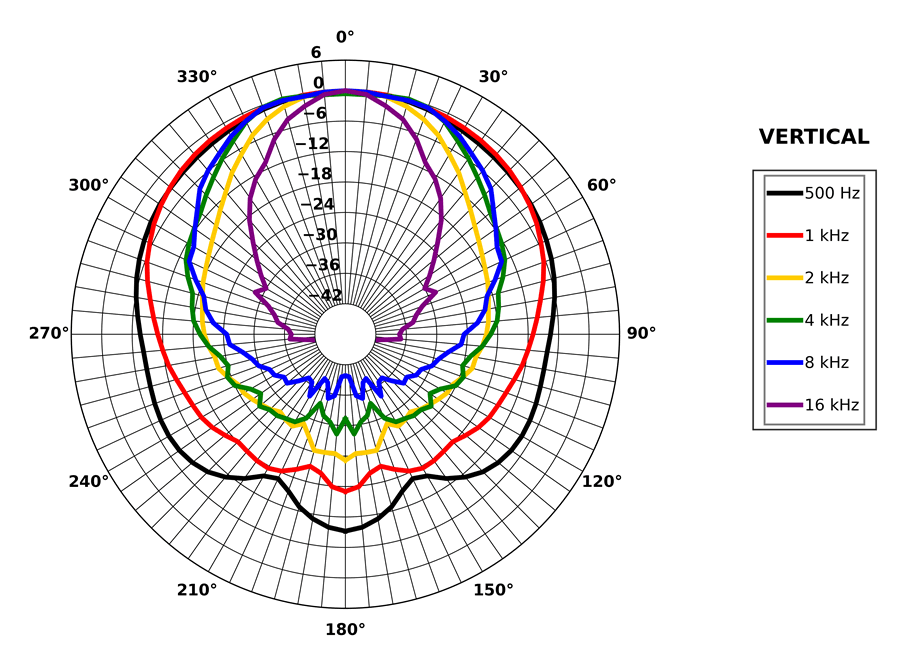

Vertical polar directivity

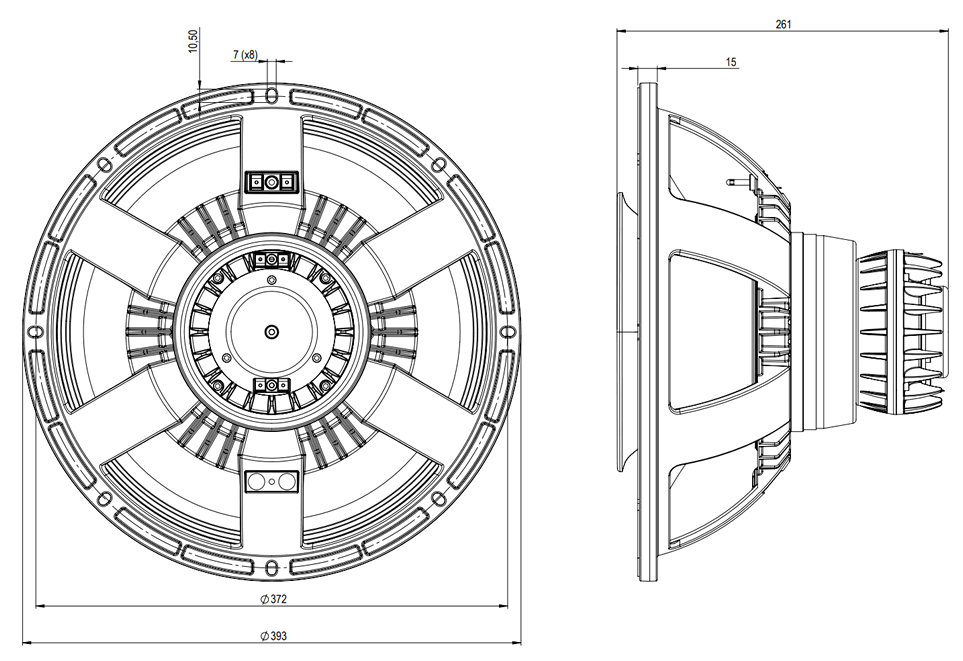

Dimensions
