Compression driver coaxial B&C DCX462, 8+8 ohm, 2.0-inch exit
|
B&C Speakers |
DCX462 |
DCX462-8+8 |
DRVDCX4628 |
Coaxial compression driver |
Sold by piece |
|
|
Brand B&C Speakers |
Model DCX462 |
TLHP code DCX462-8+8 |
Manufacturer code DRVDCX4628 |
||
|
Product type Coaxial compression driver |
Sales packaging Sold by Piece |
|
|||
42%
Simulate shipping costs and VAT
If you want to purchase more than the quantity in stock, have a look at the supply time below :
Indicative average supply lead time: 5 weeks
learn more
-
Time coherent coaxial ring radiator design
2" horn throat diameter
300 - 18000 Hz response
111.4 dB sensitivity
220 W continuous program power capacity
Neodymium magnet assembly
B& C engineers have been working for the last five years on a family of next generation high frequency devices. Compression drivers are the linchpin of a PA system: operating at wavelengths too small to readily couple with other drivers, they alone have to fight distance and atmospheric losses to deliver concert sound pressure levels to ever larger audiences.
Enter the DCX462 coaxial ring radiator, designed from scratch to advance the state of the art. The DCX462’s midrange diaphragm covers 300Hz – 5.5kHz with 111.1 dB sensitivity, and its 100mm voice coil handles 220 watts. The 64mm coil high frequency diaphragm covers 3 – 18kHz with 111.4 dB sensitivity and handles 160 watts. A patent pending midrange integrator allows both diaphragms to work in harmony over a wide bandwidth, for greater combined output and crossover flexibility. All this energy arrives at a 2” throat, from the most compact package that can be designed today.
Brand new materials and thousands of hours of modelling and testing result in lower distortion at higher SPL than has ever been possible before. Consider the new DCX462 for your next design, and enjoy a new standard in fidelity, with the reliability and consistency you expect from B& C.
General |
|
| Product type | Coaxial compression driver |
| Brand | B&C Speakers |
| Reference | DCX462 |
| Product code | DRVDCX4628 |
Datas |
|
| Weight | ~4 kg |
Shape & Materials |
|
| Front chape | Cylindrical |
Question about B&C Speakers DCX462-8+8
Ask a new question!This system is only available for technical questions. For questions of prices, availability of products and deadline thank you to send your request by the contact page.
B&C Speakers DCX462-8+8, Range, version, replacement...
From B&C Speakers
From others manufacturers
Repair B&C Speakers DCX462-8+8
Use B&C Speakers DCX462-8+8
|
|
With B&C Speakers DCX462-8+8, customers has also bought
Informations B&C Speakers DCX462-8+8
2" horn throat diameter
300 - 18000 Hz response
111.4 dB sensitivity
220 W continuous program power capacity
Neodymium magnet assembly
B& C engineers have been working for the last five years on a family of next generation high frequency devices. Compression drivers are the linchpin of a PA system: operating at wavelengths too small to readily couple with other drivers, they alone have to fight distance and atmospheric losses to deliver concert sound pressure levels to ever larger audiences.
Enter the DCX462 coaxial ring radiator, designed from scratch to advance the state of the art. The DCX462’s midrange diaphragm covers 300Hz – 5.5kHz with 111.1 dB sensitivity, and its 100mm voice coil handles 220 watts. The 64mm coil high frequency diaphragm covers 3 – 18kHz with 111.4 dB sensitivity and handles 160 watts. A patent pending midrange integrator allows both diaphragms to work in harmony over a wide bandwidth, for greater combined output and crossover flexibility. All this energy arrives at a 2” throat, from the most compact package that can be designed today.
Brand new materials and thousands of hours of modelling and testing result in lower distortion at higher SPL than has ever been possible before. Consider the new DCX462 for your next design, and enjoy a new standard in fidelity, with the reliability and consistency you expect from B& C.
Name Compression driver coaxial B&C DCX462, 8+8 ohm, 2.0-inch exit
SKU DCX462-8+8
Seller TLHP
Price € 577.81 481.51
Availability In stock
Buy Compression driver coaxial B&C DCX462, 8+8 ohm, 2.0-inch exit
All or a part of the characteristics displayed on this page are provided by the manufacturer, it is possible that some pieces of information are unavailable or wrong. In addition, the manufacturer may need to change the product specifications without notice at any time in order to improve the product, or to adapt his offer to the manufacturing and supply constraints.. We suggest you to contact us if you need further information, if you observe a mistake or if you wish to have confirmation about information.
Measures/Schemes B&C Speakers DCX462-8+8
SPL measure
Impedance measure

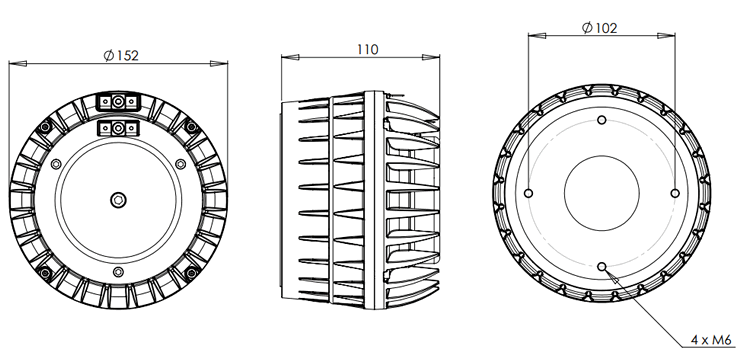

Dimensions
Garantie
This product is under manufacturer's warranty. This warranty protect you for the manufacturing defaults. The warranty does not protect for abnormal use of the product.
