Compression driver FaitalPRO HF1460, 8 ohm, 1.4 inch
|
Faital Pro |
HF1460 |
HF1460-8 |
00864360 |
Compression driver |
Sold by piece |
|
|
Brand Faital Pro |
Model HF1460 |
TLHP code HF1460-8 |
Manufacturer code 00864360 |
||
|
Product type Compression driver |
Sales packaging Sold by Piece |
|
|||
9%
Simulate shipping costs and VAT
If you want to purchase more than the quantity in stock, have a look at the supply time below :
Next TLHP reception estimated between Jun 13, 2025 and Jun 20, 2025-
When carbon fiber meets high frequency.
Thanks to the use of an innovative carbon fiber dome diaphragm, HF1460 is the first compression driver of its kind in the FaitalPRO catalogue. This high-end 1.4" Neodymium compression driver can guarantee outstanding, top of the range performance in today’s ever more demanding PRO Audio market.
The choice of implementing noble materials in the HF1460 design is a key factor. Its powerful high-grade neodymium magnet assembly in combination with its 86mm (3.4 in) voice coil makes it one of the most powerful engines ever implemented in a FaitalPRO compression driver.
The HF1460’s features makes it perfect for any high-end application where power and quality are essential. It can be easily integrated in a multitude of applications including flagship line arrays, point sources designs, hi-end two way cabinets and many others... the only limit is your creativity!
General |
|
| Product type | Compression driver |
| Brand | Faital Pro |
| Reference | HF1460 |
| Product code | 00864360 |
Informations |
|
| Nominal impedance | 8 ohm |
| Dimensional category | 4.5 inch |
| Manufacturer sensitivity | 109 dB |
| Nominal power handling | 120 W |
| Max power handling | 240 W |
| Bandwidth | 600÷18000 Hz |
| Recommended min cutoff frequency | 700 Hz |
| Exit dimension | 1.4 inch |
Fundamental parameters |
|
| Re | 5.6 ohm |
Datas |
|
| Flux density | 2.2 T |
| Calculated Xmax | ±1.04 mm |
| Zmin | 7 ohm |
| Weight | ~2.1 kg |
| Air volume occupied by the driver | 0.65 L |
Dimensions |
|
| Voice coil diameter | 3.4 inch |
| Winding depth | 3.4 mm |
| Gap height | 4 mm |
| Outside diameter | 120 mm |
| Depth | 65 mm |
| Driver dimensions mouting holes | M6 |
| Driver mounting system | 4 points on diameter 101.6 mm |
Shape & Materials |
|
| Front chape | Cylindrical |
| Magnet type | Neodymium |
| Winding material | Aluminium |
| Voice coil former | Kapton |
Question about Faital Pro HF1460-8
Ask a new question!This system is only available for technical questions. For questions of prices, availability of products and deadline thank you to send your request by the contact page.
Faital Pro HF1460-8, Range, version, replacement...
With Faital Pro HF1460-8, customers has also bought
Informations Faital Pro HF1460-8
Thanks to the use of an innovative carbon fiber dome diaphragm, HF1460 is the first compression driver of its kind in the FaitalPRO catalogue. This high-end 1.4" Neodymium compression driver can guarantee outstanding, top of the range performance in today’s ever more demanding PRO Audio market.
The choice of implementing noble materials in the HF1460 design is a key factor. Its powerful high-grade neodymium magnet assembly in combination with its 86mm (3.4 in) voice coil makes it one of the most powerful engines ever implemented in a FaitalPRO compression driver.
The HF1460’s features makes it perfect for any high-end application where power and quality are essential. It can be easily integrated in a multitude of applications including flagship line arrays, point sources designs, hi-end two way cabinets and many others... the only limit is your creativity!
Name Compression driver FaitalPRO HF1460, 8 ohm, 1.4 inch
SKU HF1460-8
Availability In stock
Buy Compression driver FaitalPRO HF1460, 8 ohm, 1.4 inch
All or a part of the characteristics displayed on this page are provided by the manufacturer, it is possible that some pieces of information are unavailable or wrong. In addition, the manufacturer may need to change the product specifications without notice at any time in order to improve the product, or to adapt his offer to the manufacturing and supply constraints.. We suggest you to contact us if you need further information, if you observe a mistake or if you wish to have confirmation about information.
Measures/Schemes Faital Pro HF1460-8

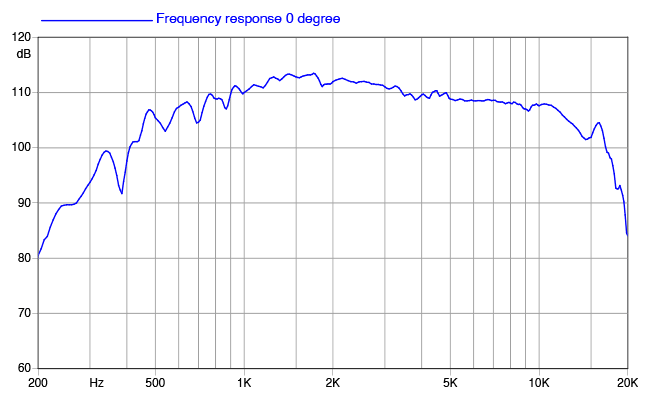

SPL measure

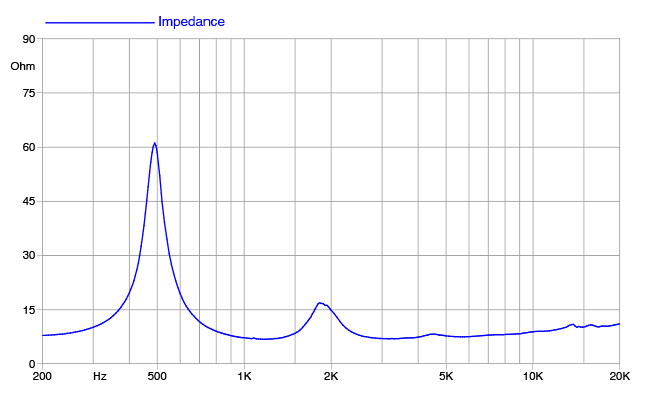

Impedance measure

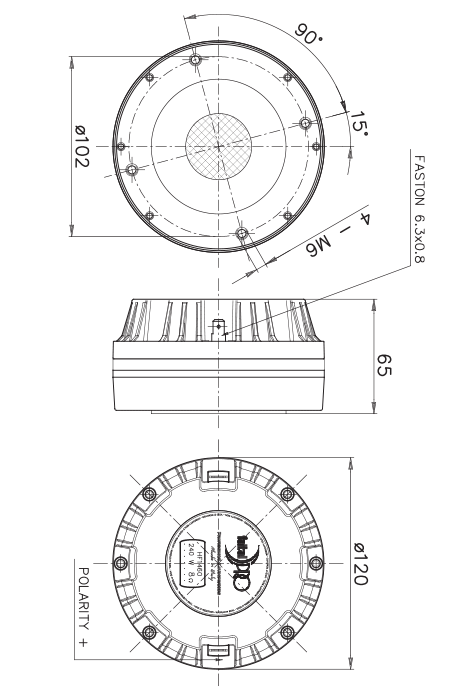

Dimensions
Garantie
This product is under manufacturer's warranty. This warranty protect you for the manufacturing defaults. The warranty does not protect for abnormal use of the product.
